DS Flash Equipment > new passkey ?

#65952 - takhisis_astrafall - Sat Jan 07, 2006 12:52 am

hello, i've just receive a M3 shipped with a passkey, when i saw that the passkey didn't work with my ds, i think, "no prob's i can upgrade it to a passkey2".

then.. i take off the passkey and... no way. the chip is all scratched... and it has 4x16 pins. so i can't use a classic jtag. :(

where the other were having a nds-passme-real... i'va a "nds-pass-acex-01"
by searching a little, i found that the acex is chip, but i don't know how to wire it and if i can flash it.

am i the only one with this passkey ?

#66055 - Mindcontroller - Sat Jan 07, 2006 11:02 pm

From what I know, there's a flasher delivered along with the M3. You need to plug the M3 in the flasher and use the software also delivered along with your M3, to flash it.

#66348 - doller - Tue Jan 10, 2006 1:00 am

Hello,
I've just receive a M3 with a passkey to
I take some pictures
http://hasardsonik.free.fr/dam/passkey-recto.jpg

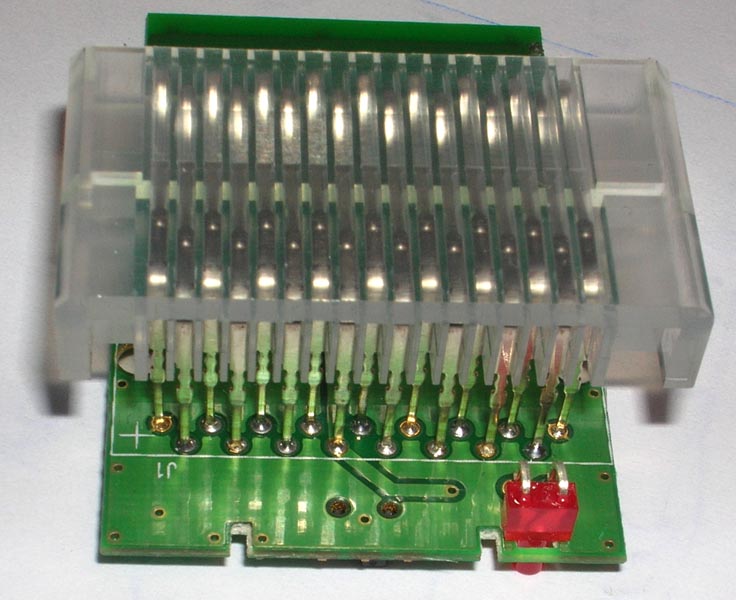

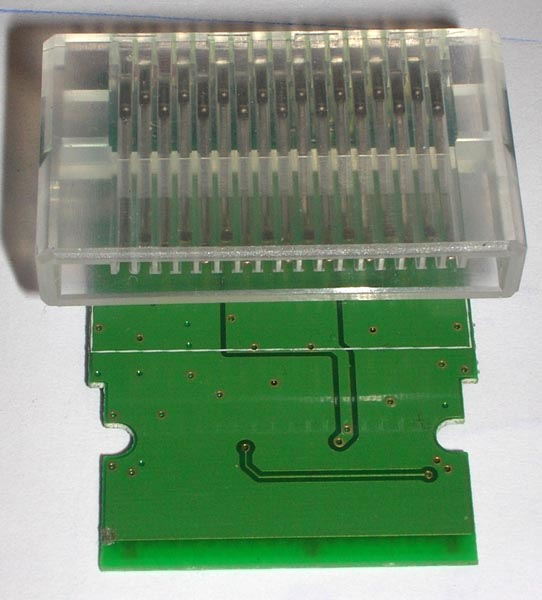

http://hasardsonik.free.fr/dam/passkey-verso1.jpg
http://hasardsonik.free.fr/dam/passkey-verso2.jpg
Is it the same ?

#66394 - darkfader - Tue Jan 10, 2006 9:58 am

Ohh... an Altera ACEX?
I see J3 and J4 pads. DS slot pad 2 might also be something.
http://www.altera.com/literature/ds/acex.pdf
Now where do they have infoz about 64 pin variant?

#66608 - darkserman - Thu Jan 12, 2006 12:31 pm

Hi there,
i?ve also one of those rare passkeys
mine (and i think your is the same) is an Actel ex128-F TQ64 0518

I worked out the connections for the jtag, here:
[Images not permitted - Click here to view it]

We could now program the cip, but i?m wondering if it?ll work with the imPact xilinx software, or even, if the *.jed will work on this actel.

Any clue?

Let?s hack this fucking passkey ;)

darkserman

#66628 - darkfader - Thu Jan 12, 2006 3:32 pm

That makes more sense. GBAMP uses such chip too.
You can't do anything with these anti-fuse devices, so just give up.

#66632 - darkserman - Thu Jan 12, 2006 3:55 pm

darkfader wrote:
That makes more sense. GBAMP uses such chip too.
You can't do anything with these anti-fuse devices, so just give up.


Ouch!
I feel impotent :(

Well, at least now i know that nothing can?t be done.
I should buy a passX2

Thank you darkfader, and congratulations for your work on the Scene ;)
regards.

#66751 - tepples - Fri Jan 13, 2006 7:37 am

darkfader: Do you plan on investigating any of these boot methods as an alternative to the new passkey?
